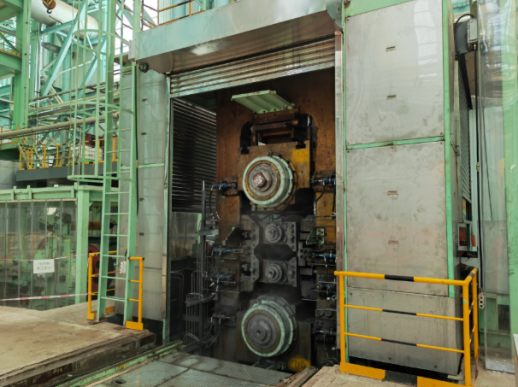

Tension Leveling at the skin pass mill

In the metallurgical rolling industry, especially in the production of galvanized sheets, tension leveling at the skin pass mill is a crucial post-processing procedure that directly determines the surface quality, flatness, and mechanical properties of finished products. Skin pass itself, as a light rolling process, cooperates with tension control to eliminate material defects and optimize product performance. The skin pass mill galvanizing line, integrating this core process, has become an indispensable part of high-quality galvanized sheet production. Beijing Yang Wang Li Xin Sci&Tech Co.,Ltd. (YWLX), established in 2003, is a preeminent professional turn-key project provider specializing in metallurgical rolling machinery for the iron, steel, and non-ferrous industries. With the invaluable expertise of its founder Dr. Yang (former department head at the China Top Iron & Steel Research Institute) and the team, YWLX has become a leading manufacturer of skin pass mill in China, and its tension leveling technology applied in skin pass mill galvanizing line has been widely recognized by customers at home and abroad.

Basic Principle And Core Functions Of Tension Leveling At Skin Pass Mill

Core Principle: Tension leveling at the skin pass mill realizes the correction of sheet metal defects through the combined action of tension and rolling force. During the process, the sheet metal is subjected to continuous tension while passing through the skin pass rolls, which causes the uneven parts of the sheet to generate plastic deformation. Under the synergistic effect of tension and light rolling, the internal stress of the sheet is released, and the flatness is significantly improved. This principle is especially critical in the skin pass mill galvanizing line to ensure the surface quality of galvanized sheets.

Key Functions: As an important facility in the galvanizing line, the skin pass mill undertakes three core tasks through tension leveling: First, creating the required surface roughness of galvanized sheets to improve the quality of the subsequent color coating process; second, enhancing the flatness of galvanized sheets to avoid waviness and warpage; third, optimizing the mechanical properties of galvanized sheets, reducing or eliminating the yield plateau and stretcher strains to prevent surface defects during subsequent processing.

Technical Advantages of YWLX: YWLX summarizes and absorbs the latest domestic and foreign technologies, and combines Chinese market requirements to optimize the tension leveling process of skin pass mill. Its self-developed tension control system can realize precise adjustment of tension according to different sheet materials and thicknesses, ensuring the stability of the tension leveling effect and avoiding over-stretching or insufficient leveling.

Adaptability to Different Galvanizing Processes: The tension leveling technology of YWLX's skin pass mill is widely applicable to various skin pass mill galvanizing line, including zinc galvanized, aluminum-zinc galvanized, and lithium-magnesium-zinc galvanized production lines, as well as continuous pickling-temper lines, showing strong process adaptability.

Application Characteristics Of Tension Leveling In Different Skin Pass Mills

Skin Pass Mill Type	Tension Leveling Parameter Characteristics	Applicable Product Scenarios	Application Effect Of YWLX Equipment
Hot Skin Pass Mill	Higher rolling temperature (150-300℃); moderate tension and rolling force matching; tension control precision up to ±5KN	Hot-rolled galvanized sheets, thick-gauge galvanized structural parts	Effectively eliminates hot-rolled residual stress; improves sheet flatness by over 30%; rolling force up to 12000KN meets thick-gauge sheet processing needs
Cold Skin Pass Mill	Room temperature operation; precise tension control (±3KN); light rolling reduction (0.3%-1.5%)	Cold-rolled galvanized sheets, automotive sheet, electrical steel	Creates uniform surface roughness (Ra 0.2-1.0μm); ensures excellent flatness for high-end applications; avoids surface scratches
Skin Pass Mill Galvanizing Line Special Type	Tension and rolling force dynamic adjustment according to galvanized layer thickness; anti-corrosion design for rolling rolls	Zinc galvanized, aluminum-zinc galvanized, lithium-magnesium-zinc galvanized sheets	Protects galvanized layer from damage during tension leveling; improves galvanized layer adhesion; applicable to various width specifications (1150mm-1800mm)
Continuous Pickling-Temper Line Skin Pass Mill	Continuous tension matching with pickling and tempering processes; stable rolling speed synchronization	Pre-painted galvanized sheet substrates, high-precision decorative galvanized sheets	Realizes seamless connection with front and rear processes; improves production efficiency by 20%; ensures consistent surface quality of the entire production line

Key Technical Points Of Tension Leveling At Skin Pass Mill

Precise Tension Control: Tension is the core parameter of tension leveling at the skin pass mill. Excessive tension will cause sheet thinning or even breaking, while insufficient tension cannot eliminate defects. YWLX's skin pass mill is equipped with a high-precision tension sensor and a closed-loop control system, which can monitor and adjust the tension in real time, ensuring the tension is always within the optimal range.

Roll Configuration Optimization: The roll surface roughness and roll diameter of the skin pass mill directly affect the surface quality of the sheet after tension leveling. For the skin pass mill galvanizing line, YWLX adopts special roll surface treatment technology to create the required roughness, and optimizes the roll diameter matching according to different sheet thicknesses to ensure uniform rolling pressure distribution.

Synchronization Of Speed And Tension: In the continuous skin pass mill galvanizing line, the synchronization between the skin pass speed and the tension of the front and rear processes is crucial. YWLX's speed-tension synchronization control system can realize precise matching of speed and tension, avoiding sheet accumulation or stretching caused by speed mismatch, ensuring the stability of the production line.
Rolling Force Adjustment: The rolling force of the hot skin pass mill and cold skin pass mill needs to be adjusted according to the material properties and processing requirements. YWLX's skin pass mill can provide rolling forces ranging from 4000KN to 12000KN, and the rolling force adjustment is stepless and precise, adapting to different processing needs of galvanized sheets.

Importance Of Tension Leveling In Skin Pass Mill Galvanizing Line

Improve Surface Quality Of Galvanized Sheets: Tension leveling at the skin pass mill can eliminate surface defects such as waviness and unevenness of galvanized sheets, and create uniform surface roughness. This not only improves the appearance quality of galvanized sheets but also provides a good foundation for the subsequent color coating process, ensuring the adhesion and uniformity of the coating.
Enhance Product Mechanical Properties: Through tension leveling, the internal stress of galvanized sheets is released, the yield plateau and stretcher strains are eliminated, and the mechanical properties such as toughness and ductility of the sheets are improved. This makes the galvanized sheets more suitable for stamping, bending, and other subsequent processing, expanding their application scope.
Guarantee Production Line Stability: The skin pass mill with excellent tension leveling performance can realize stable operation of the skin pass mill galvanizing line, reduce the number of unqualified products caused by poor leveling, and improve production efficiency. YWLX's skin pass mill has been widely used in various galvanizing production lines, winning customer praise for its stable and reliable performance.
Meet High-End Market Requirements: With the continuous improvement of market requirements for galvanized sheet quality, the quality of tension leveling at the skin pass mill has become a key factor in entering high-end markets such as automotive and electrical appliances. YWLX's advanced tension leveling technology helps customers produce high-quality galvanized sheets that meet international standards, enhancing their market competitiveness.

Skin Pass Mill FAQs

What Is The Difference Between Tension Leveling Of Hot Skin Pass Mill And Cold Skin Pass Mill

The core difference lies in the processing temperature, parameter matching, and application scenarios. The hot skin pass mill operates at 150-300℃, requiring higher and more stable rolling force (up to 12000KN) to adapt to the high-temperature material properties, mainly used for hot-rolled galvanized sheets. The cold skin pass mill operates at room temperature, focusing on precise control of tension and light rolling reduction (0.3%-1.5%), suitable for cold-rolled galvanized sheets such as automotive sheet. YWLX optimizes the tension leveling parameters for both types of mills to ensure the best processing effect.

Can The Tension Leveling Parameters Of Skin Pass Mill Be Customized According To Different Galvanized Processes

Yes, YWLX's skin pass mill supports customized tension leveling parameters. For different galvanized processes such as zinc galvanized, aluminum-zinc galvanized, and lithium-magnesium-zinc galvanized, the team will adjust parameters such as tension, rolling force, and roll surface roughness according to the characteristics of the galvanized layer and material properties. The skin pass mill is equipped with a flexible control system that can store multiple sets of parameter programs, facilitating quick switching between different production processes.

How To Maintain The Stability Of Tension Leveling Effect In Long-Term Operation Of Skin Pass Mill

To maintain stable tension leveling effect, the following points should be noted: First, regular inspection and maintenance of tension sensors and rolling force sensors to ensure their detection accuracy; second, regular grinding and maintenance of skin pass rolls to maintain uniform roll surface roughness; third, regular calibration of the speed-tension synchronization system to avoid mismatch; fourth, YWLX provides regular on-site technical support to adjust parameters and eliminate potential faults according to the actual operation of the production line.

Is Tension Leveling Necessary For All Skin Pass Mill Galvanizing Line

Yes, tension leveling is an indispensable process for all skin pass mill galvanizing line. Galvanized sheets after galvanizing often have defects such as uneven surface and internal stress. Without tension leveling, the flatness and mechanical properties of the sheets cannot meet the application requirements, and the subsequent color coating process will also be affected. The skin pass process combined with tension leveling is the key to ensuring the quality of galvanized sheets, so it is widely used in all types of galvanizing production lines.

What Technical Support Does YWLX Provide For Skin Pass Mill Users

YWLX provides comprehensive technical support forskin pass mill users, including: first, pre-sales consultation – professional team designs customized skin pass mill solutions (including width, rolling force, etc.) according to user's skin pass mill galvanizing line requirements; second, on-site installation and commissioning – ensure the tension leveling system operates normally; third, operator training – conduct systematic training on parameter adjustment and daily maintenance; fourth, after-sales maintenance – 24-hour technical support hotline and on-site maintenance services; fifth, technology upgrade – provide technical upgrade services according to user's production process improvement needs.
