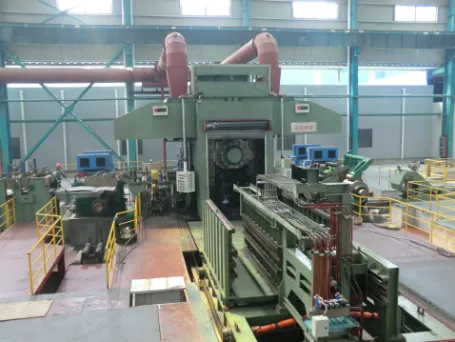

Roll Wear and Life Management in a Reversing Cold Rolling Mill

The reversing cold rolling mill is a cornerstone of modern metal manufacturing, particularly in the production of high-precision, high-strength strip products. Unlike continuous tandem mills, a cold reversing mill processes a single strip back and forth through the same stand multiple times to achieve the desired reduction in thickness and improvement in material properties. This unique operational methodology, where the work rolls repeatedly engage, reverse direction, and disengage, places exceptional demands on the rolling mill rolls. Consequently, the management of roll wear and the extension of roll life become paramount, not only for economic efficiency but also for ensuring consistent product quality and operational reliability.

The Operational Mechanics of a Reversible Cold Rolling Mill

To fully appreciate the challenges of roll wear, one must first understand the environment within a reversible rolling mill. Each pass subjects the work rolls and backup rolls to immense mechanical stress, high thermal loads from deformation energy, and chemical interactions with rolling emulsions. The "reversing" action means that the bite point and the engagement shock occur with every pass, creating a cyclical loading pattern that accelerates fatigue. The rolls are the heart of the operation; their surfaces must maintain specific topographies to ensure effective friction and strip surface finish. Any deterioration in their condition directly translates to defects in the steel or aluminum strip, such as scratches, chatter marks, or variations in thickness profile.

Primary Mechanisms of Roll Deterioration in a Cold Reversing Mill

The wear of rolls in a reversing cold mill is not a simple process but a synergistic combination of several degradation mechanisms.

Abrasive Wear is the most prevalent form. It occurs as hard asperities on the strip surface or embedded debris plow and cut into the roll surface. The high specific pressures involved in cold rolling exacerbate this effect. Over successive passes, this abrasion gradually removes material from the roll barrel, altering its crown and contour. This gradual loss of profile compromises the mill’s ability to control the strip shape, potentially leading to defects like edge wave or center buckle.

Adhesive Wear, or galling, happens when microscopic fragments of the strip material weld onto the roll surface under extreme pressure and temperature. This is often followed by the tearing away of minute particles from the roll itself. This mechanism is highly dependent on the material being rolled; higher strength alloys tend to promote more adhesive wear. The resulting built-up edge (BUE) can then scratch subsequent sections of the strip.

Fatigue Wear is a critical failure mode. The cyclic Hertzian stresses applied to the roll surface with each pass can lead to the formation of microcracks. These cracks often originate at microscopic inclusions or grinding marks on the roll surface. Over time, these cracks propagate, eventually leading to spalling—where small chunks of the roll material break away. Spalling is a catastrophic form of failure that necessitates immediate roll change. The reversing nature of the mill means these stress cycles accumulate rapidly, making fatigue a central concern in roll life management.

Corrosion and Thermal Fatigue are also significant contributors. Rolling emulsions, while essential for cooling and lubrication, can be chemically aggressive. Pitting corrosion can initiate stress concentration points that accelerate fatigue cracking. Furthermore, the rapid heating during the roll bite and cooling from the emulsion creates thermal cycling. This cycling induces thermal stresses that can cause "firecracking"—a network of fine thermal cracks on the roll surface that degrade the finished strip surface and can serve as nucleation sites for more severe spalling.

Reversible Cold Rolling Mill: A Holistic Strategy for Roll Life Management

Managing the life of rolls in a reversible cold rolling mill requires an integrated approach that spans operational practices, maintenance protocols, and technological investment.

Precision Roll Grinding and Profiling: The foundation of long roll life is laid in the grinding shop. Regular and precise grinding is essential to remove fatigued surface layers, restore the correct crown and contour, and achieve the required surface finish. The grinding process itself must be controlled to avoid introducing residual stresses or microcracks. Employing ultrasonic testing between grinds to inspect for subsurface cracks is a best practice that prevents rolls with hidden flaws from being placed back into service, where they could fail catastrophically.

Advanced Roll Material Selection: The choice of roll material is a critical economic and technical decision. For work rolls in a reversing rolling mill, materials range from forged steel to high-chromium iron and tungsten carbide. Forged steel rolls offer good toughness and resistance to spalling, while high-chromium iron rolls provide superior wear resistance due to their high carbide content. Tungsten carbide rolls represent the pinnacle of wear resistance and are increasingly used in the hardest stands for processing advanced high-strength steels, though at a higher initial cost. The selection must balance initial cost, wear resistance, toughness, and resistance to thermal shock.

Optimization of Rolling Parameters and Lubrication: Mill operators have a direct influence on roll wear through their setup decisions. Optimizing parameters such as reduction per pass, rolling speed, and tension can significantly reduce the specific load on the rolls. Furthermore, the quality, concentration, and application method of the rolling emulsion are crucial. A well-formulated emulsion provides a robust lubricating film that minimizes metal-to-metal contact, reducing both abrasive and adhesive wear. Effective filtration of the emulsion to remove metallic debris is non-negotiable, as these particles act as an abrasive paste that drastically accelerates wear.

Data-Driven Monitoring and Control: Modern reversible cold rolling mills are equipped with extensive sensor networks. Leveraging this data is key to predictive life management. Monitoring rolling force, torque, and vibration can provide early warnings of abnormal wear conditions or the onset of chatter. Systematically tracking the tonnage rolled per grind for each roll creates a historical database. This allows for the development of predictive models that forecast wear patterns and schedule maintenance proactively, minimizing unplanned downtime and maximizing the useful life of each roll set.

In the demanding environment of a reversing cold mill, the rolls are both a vital tool and a consumable asset. Their wear is an inevitable consequence of transforming raw metal into precision strip. However, through a comprehensive understanding of the underlying wear mechanisms and a disciplined, holistic management strategy, operators can significantly extend roll service life. This involves the meticulous selection of roll materials, the precision of maintenance grinding, the optimization of every rolling parameter, and the intelligent use of operational data. Effective roll wear and life management is therefore not merely a maintenance activity; it is a critical strategic function that directly impacts the profitability, quality, and competitiveness of a modern rolling operation.
