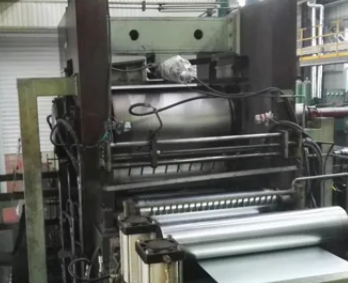

Effect of Skin Pass Rolling on Metal Ductility

In the production of automobile steel, plate, strip, and coil—key materials for automotive manufacturing and industrial applications—skin pass rolling serves as a critical post-processing step to refine material properties and surface quality. Yang Wang Li Xin (YWLX), a leader in advanced steel processing technologies, integrates skin pass rolling process into its galvanizing lines, where dedicated skin pass mills optimize the performance of skin pass steel (e.g., galvanized automobile body sheets). While skin pass rolling is widely known for enhancing surface roughness and flatness, its impact on metal ductility— a key mechanical property for forming complex automotive parts— is equally significant.

How Skin Pass Rolling Modulates Ductility of Skin Pass Steel

• Skin Pass Rolling exerts a controlled influence on the ductility of skin pass steel by inducing low-level plastic deformation (typically 0.5–3% reduction in thickness), a key distinction from heavy cold rolling which significantly reduces ductility. In YWLX’s galvanizing lines, this mild deformation targets the “yield plateau” of steel— a region in the stress-strain curve where plastic deformation occurs without increasing stress, which causes stretcher strains (surface defects) during forming. By eliminating the yield plateau, skin pass rolling aligns the steel’s deformation behavior, making ductility more predictable during downstream processes like stamping automotive fenders or hoods. For example, skin pass steel processed with 1.5% reduction at YWLX maintains 80–85% of its original ductility (measured by elongation at break), while eliminating the risk of stretcher marks— a balance that is ideal for automotive body sheets requiring both formability and surface quality.

• The effect of skin pass rolling on ductility also depends on the initial microstructure of the steel. For automobile steel grades like IF (Interstitial-Free) steel— commonly used for deep-drawn parts— YWLX’s skin pass rolling process preserves high ductility by avoiding excessive grain refinement. The low reduction rate ensures that the steel’s grain structure remains relatively coarse (average grain size 15–20μm), which supports uniform plastic flow during deep drawing. In contrast, for high-strength automotive steel (e.g., DP 590), skin pass rolling with 2–3% reduction slightly reduces ductility (by 5–10%) but enhances yield strength, creating a balance suitable for structural components like door pillars. Wholesalers can advise clients to specify reduction rates based on end-use: lower rates (0.5–1%) for ductility-critical parts and higher rates (2–3%) for strength-focused applications, leveraging YWLX’s customizable skin pass rolling process.

Impact of Skin Pass Rolling Process Parameters on Ductility

• Rolling force, a core parameter of the skin pass rolling process, directly influences ductility by controlling the extent of plastic deformation. YWLX’s skin pass mills use hydraulic pressure control (precision ±1kN) to adjust rolling force, ensuring consistent reduction across the width of automobile steel strips (up to 2000mm). Higher rolling force increases reduction rate, which reduces ductility— for instance, a force increase from 50kN to 80kN on a 1.0mm thick galvanized strip raises reduction from 1% to 2.5%, lowering elongation at break from 32% to 28%. However, YWLX’s real-time force monitoring prevents over-reduction: if force exceeds the set threshold (calibrated for each steel grade), the system automatically adjusts the roll gap to maintain target ductility. This precision is critical for wholesalers supplying skin pass steel to automotive clients, as it ensures batch-to-batch consistency in formability.

• Work roll texture, another key parameter of the skin pass rolling process, indirectly affects ductility by influencing friction between the roll and steel strip. YWLX offers two work roll textures for skin pass mills: smooth rolls (for ultra-clean surfaces, e.g., electrical steel coils) and textured rolls (for galvanized automotive sheets). Textured rolls (created via laser or shot peening) increase friction, which promotes uniform deformation across the strip’s thickness— this reduces localized stress concentrations that can limit ductility. For example, skin pass steel processed with textured rolls at YWLX shows 3–5% higher uniform elongation (a measure of stable deformation) compared to smooth-rolled steel of the same grade. Additionally, textured rolls reduce the risk of “stick-slip” during rolling, a phenomenon that causes uneven deformation and inconsistent ductility. Wholesalers can highlight this parameter to clients, noting that YWLX’s customizable roll textures allow tailoring ductility to specific forming needs.

Role of Skin Pass Rolling in Ductility Consistency for Automotive Applications

• In automotive manufacturing, consistent ductility across skin pass steel batches is essential to avoid forming defects (e.g., cracking, wrinkling) in automated stamping lines. YWLX’s skin pass rolling process ensures this consistency by integrating in-line ductility monitoring: after rolling, a tensile testing unit (sampling rate 1 sample/100m) measures elongation at break and yield strength, feeding data back to the control system to adjust parameters in real time. For example, if a sample of skin pass steel shows elongation 2% below the target (e.g., 28% vs. 30% for IF steel), the system reduces rolling force by 5–8kN to lower the reduction rate, restoring ductility. This closed-loop control results in batch-to-batch ductility variation of less than ±2%, which meets the strict standards of automotive OEMs (Original Equipment Manufacturers).

• Skin Pass Rolling also enhances ductility consistency by mitigating the effects of prior processing (e.g., galvanizing heat treatment). Galvanizing can introduce residual stresses in steel strips, which cause uneven deformation and inconsistent ductility. YWLX’s skin pass mills apply a uniform reduction that relieves these residual stresses— for galvanized automobile steel, this stress relief increases ductility uniformity by 10–15% compared to non-skin-passed material. For example, a galvanized strip with residual stress variations (±50MPa) may show elongation differences of 4–5% across its width; after skin pass rolling, stress variations are reduced to ±20MPa, and elongation differences narrow to 1–2%. This uniformity is critical for wholesalers supplying wide skin pass steel strips (e.g., 1800mm width for automotive roof panels), as it ensures consistent forming performance across the entire strip.

Skin Pass Rolling FAQS

How does skin pass rolling affect the ductility of high-strength skin pass steel used in automotive structural parts?

For high-strength skin pass steel (e.g., DP 600, TRIP 700) used in automotive structural components (e.g., crash beams, roof rails), skin pass rolling typically reduces ductility by 5–12% (from 25% to 20–22% elongation at break) while increasing yield strength by 30–50MPa. This trade-off is intentional: YWLX’s skin pass rolling process uses 2–3% reduction to refine the steel’s microstructure (e.g., increasing dislocation density), enhancing structural integrity without compromising essential formability. The reduced ductility is still sufficient for bending and shallow stamping— common processes for structural parts— while the higher strength improves crash performance. Wholesalers can advise clients to select this parameter balance for structural applications, ensuring compliance with automotive safety standards (e.g., ISO 6683).

Can YWLX’s skin pass rolling process be adjusted to preserve maximum ductility for deep-drawn skin pass steel?

Yes, YWLX’s skin pass rolling process can be optimized to preserve maximum ductility for deep-drawn skin pass steel (e.g., IF steel for fuel tanks, oil pans). By using a low reduction rate (0.5–1%), minimal rolling force (40–60kN for 1.0mm thick strips), and smooth work rolls, the process eliminates the yield plateau (to prevent stretcher strains) while preserving 90–95% of the original ductility (e.g., maintaining 32–34% elongation from 35% initial). YWLX also uses a slow rolling speed (300–500m/min) to ensure uniform deformation, avoiding localized stress that could reduce ductility. This setup is ideal for deep-drawing applications, where high ductility is needed to stretch the steel into complex shapes without cracking. Wholesalers can promote this customization option to clients in the automotive fuel system or kitchen appliance sectors, where deep drawing is a key process.

Does skin pass rolling affect the ductility of galvanized skin pass steel differently than non-galvanized steel?

Skin pass rolling has a more pronounced positive effect on the ductility consistency of galvanized skin pass steel compared to non-galvanized steel, though the overall ductility change is similar (0.5–3% reduction). Galvanizing introduces residual stresses and microstructural inhomogeneities (e.g., zinc-iron intermetallic layers) that cause ductility variations across the strip. YWLX’s skin pass rolling process relieves these stresses and homogenizes the microstructure, reducing ductility variation from 5–7% (in non-skin-passed galvanized steel) to 1–2%. For non-galvanized steel, the process primarily eliminates the yield plateau without significant stress relief, so ductility consistency improves by only 2–3%. Wholesalers can highlight this benefit to clients using galvanized skin pass steel for automotive exterior panels, where consistent ductility ensures uniform paint adhesion and forming.

What quality control measures does YWLX implement to ensure ductility meets specifications for skin pass rolling?

YWLX implements a three-stage quality control system for ductility in skin pass rolling: 1) Pre-rolling: Tests the incoming galvanized steel’s base ductility (elongation, reduction of area) to set target skin pass rolling parameters. 2) In-line monitoring: Uses an automated tensile tester to sample skin pass steel every 100m, measuring elongation at break and yield strength; data is fed to the control system for real-time parameter adjustment. 3) Post-rolling: Conducts batch testing (1 sample per 5 tons) to verify ductility compliance, with results documented in a certificate of analysis (CoA) for clients. Additionally, YWLX uses ultrasonic testing to detect internal defects that could affect ductility, ensuring only high-quality skin pass steel is shipped. Wholesalers can provide these CoAs to clients, demonstrating compliance with automotive industry standards (e.g., IATF 16949) and building trust in product performance.

How Does YWLX’s Skin Pass Rolling Process Adapt to Different Grades of Skin Pass Steel to Optimize Ductility?

YWLX’s skin pass rolling process is highly adaptable to different grades of skin pass steel, with parameter adjustments tailored to each grade’s chemical composition and mechanical properties. For IF steel (low carbon, no interstitial elements), YWLX uses a low reduction rate (0.5–1%) and smooth work rolls to preserve high ductility (32–35% elongation) for deep drawing. For DP steel (dual-phase microstructure of ferrite and martensite), the process uses a higher reduction rate (2–2.5%) to enhance strength while keeping duct.
