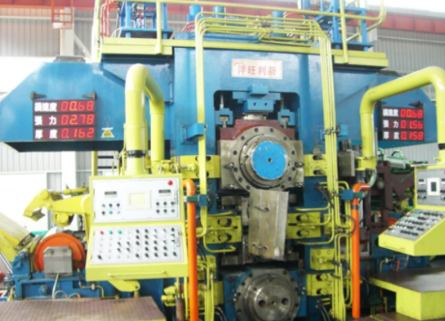

Key Components of a Modern Tempermill

In the production chain of automobile steel, plate, strip, and coil—essential materials for the automotive and manufacturing sectors—a tempermill plays a critical role in refining the mechanical properties and surface quality of cold-rolled steel. Yang Wang Li Xin (YWLX), a pioneer in advanced steel processing technologies, designs and manufactures modern tempermill systems tailored to optimize the temper rolling process for high-precision applications (e.g., automotive body panels, electrical steel coils). These systems integrate core components that work in tandem to deliver consistent performance, meeting the strict standards of automobile steel production.

YWLX Modern Tempermill Main Functions Table

Core Components Supporting the Temper Rolling Process

• The temper rolling process—the heart of tempermill operation—relies on a set of high-precision roll systems to achieve the desired material refinement. The most critical component here is the work roll assembly, which directly contacts the steel strip during rolling. YWLX equips its tempermill with work rolls made of high-chromium forged steel (HRC 60–65) for exceptional wear resistance, ensuring consistent performance over long production runs (up to 50,000 tons of automobile steel strip per roll change). For applications requiring surface texturing (e.g., automotive exterior panels), YWLX’s work rolls are precision-ground with laser or electron-beam texturing to create uniform micro-patterns, which transfer to the strip during the temper rolling process to enhance paint adhesion. Wholesalers can advise clients to select work rolls based on strip type—smooth rolls for electrical steel coils (needing ultra-clean surfaces) and textured rolls for automobile body steel (needing controlled roughness).

• Complementing the work rolls is the backup roll assembly, a key component that supports the work rolls to prevent bending under rolling pressure. In YWLX’s tempermill, backup rolls feature a multi-layer structure: a hardened outer layer (HRC 62–66) for wear resistance and a ductile inner core for shock absorption. This design ensures stable pressure distribution across the work rolls, critical for maintaining flatness during the temper rolling process of wide automobile steel strips (up to 2000mm width). The backup rolls also integrate bearing systems with oil-lubricated hydrostatic supports, reducing friction and extending roll life by 25–30% compared to traditional roller bearings. For wholesalers, supplying compatible backup rolls and bearings for YWLX tempermill systems helps clients minimize maintenance costs and keep temper mill operation running smoothly.

Key Components for Efficient Tempermill Operation

• A modern tempermill requires advanced tension control systems to ensure uniform rolling force during temper mill operation—a component YWLX optimizes for automobile steel strip production. The entry and exit tension reel assembly is central to this: entry reels pull the cold-rolled strip into the tempermill with constant tension (5–20 kN, adjustable by strip thickness), while exit reels wind the tempered strip with matching tension to prevent slack or stretching. YWLX’s tension reels feature servo-driven motors with real-time torque feedback, allowing dynamic adjustment during temper mill operation (e.g., when switching between strip thicknesses from 0.3mm to 3.0mm for different automobile steel products). Additionally, the system includes a looper assembly between the entry reel and the roll stand to absorb tension fluctuations caused by strip splicing, ensuring uninterrupted temper rolling process—a critical feature for YWLX’s continuous production lines.

• Another essential component for tempermill efficiency is the flatness control system, which addresses defects from cold rolling and ensures the strip meets automobile steel flatness standards (e.g., ≤5 I-units). YWLX integrates two core technologies here: work roll bending cylinders and intermediate roll shifting (for wide strips). The bending cylinders apply hydraulic pressure to the work roll chocks, creating a controllable convexity (0.01–0.05mm) that counteracts edge waves or center buckles. For strips wider than 1500mm, intermediate rolls shift axially (by ±50mm) to adjust the contact pressure distribution, eliminating quarter-wave defects common in wide automobile steel plates. The system also includes a laser flatness meter at the exit, which feeds real-time data to a control panel, allowing automatic adjustment of bending force and roll shifting during temper mill operation. Wholesalers can highlight this component to clients as a way to reduce manual intervention, improve product yield (above 98% for YWLX systems), and lower rework costs.

Components Ensuring Quality in Temper Mill Operation

• In temper mill operation, maintaining precise thickness control is vital for automobile steel, which requires strict dimensional tolerance (±0.002mm for thin strips). YWLX’s tempermillachieves this via a hydraulic automatic gauge control (HAGC) system—a key component integrated into the roll stand. The HAGC system uses load cells to measure rolling force and displacement sensors to monitor roll gap, adjusting the gap in real time (response time <50ms) to compensate for variations in strip thickness. For example, if the system detects a 0.003mm thickness deviation in an automobile steel strip, it instantly adjusts the hydraulic cylinders to reduce the roll gap, ensuring the final thickness meets specifications. This component is especially critical for the temper rolling process of electrical steel coils, where thickness uniformity directly impacts magnetic properties.

• To ensure surface quality in temper mill operation, YWLX’s tempermill includes a surface inspection system—a non-destructive component that scans the strip for defects (e.g., scratches, pits, residual oxide spots) during the temper rolling process. The system uses high-resolution cameras (2048 pixels) and LED lighting to capture surface images at line speeds up to 1200m/min, with AI-based software analyzing the data to detect defects as small as 0.1mm. For automobile steel strip, this ensures only defect-free material proceeds to downstream processes (e.g., galvanizing, painting), reducing waste and improving customer satisfaction. The system also logs defect data, allowing clients to identify root causes (e.g., worn work rolls, contaminated strip) and take preventive action. Wholesalers can position this component as a value-add for clients, as it supports compliance with automotive industry quality standards (e.g., IATF 16949).

Tempermill FAQS

How do the work rolls in YWLX’s tempermill contribute to the success of the temper rolling process for automobile steel?

The work rolls in YWLX’s tempermill are foundational to the temper rolling process for automobile steel in three key ways: 1) Material Interaction: High-chromium work rolls with precise hardness (HRC 60–65) apply uniform pressure to eliminate yield terrace, ensuring the strip’s mechanical properties are consistent across its length and width—critical for forming automotive parts. 2) Surface Customization: Textured work rolls create controlled roughness on the strip surface, enhancing paint adhesion for automotive exterior panels; smooth work rolls deliver ultra-clean surfaces for electrical steel coils used in automotive electronics. 3) Wear Resistance: The durable steel composition of YWLX’s work rolls minimizes wear during long production runs, reducing roll change frequency and ensuring stable temper rolling process performance. For wholesalers, supplying high-quality replacement work rolls that match YWLX’s specifications helps clients maintain consistent product quality.

What role does the tension control system play in temper mill operation, and how does YWLX optimize it for strip production?

The tension control system is essential for stable temper mill operation as it prevents strip slack (which causes wrinkling) or over-stretching (which degrades mechanical properties). YWLX optimizes this system by: 1) Using servo-driven tension reels with real-time torque feedback to maintain constant tension (5–20 kN) across different strip thicknesses (0.3–3.0mm), suitable for automobile steel and coil production. 2) Integrating a looper assembly to absorb tension fluctuations during strip splicing, enabling continuous temper mill operation without stopping. 3) Adding tension monitoring sensors at the entry and exit of the roll stand to detect deviations and adjust reel speed instantly. This optimization ensures the temper rolling process produces flat, uniform strips that meet the strict straightness requirements of automotive assembly lines.

How does YWLX’s tempermill address flatness defects during temper mill operation for wide automobile steel plates?

YWLX’s tempermill addresses flatness defects in wide automobile steel plates (up to 2000mm) via two integrated components: 1) Work Roll Bending Cylinders: These apply hydraulic pressure to the work roll chocks, creating a controllable convexity that counteracts common defects like edge waves (caused by uneven rolling pressure at the strip edges) or center buckles (caused by excessive pressure in the center). 2) Intermediate Roll Shifting: For wide plates, intermediate rolls shift axially (±50mm) to adjust the contact pressure distribution across the strip width, eliminating quarter-wave defects (uneven flatness in the strip’s quarter sections) that are hard to correct with bending alone. The system’s laser flatness meter provides real-time data, allowing automatic adjustments during temper mill operation—ensuring wide automobile steel plates meet flatness standards (≤5 I-units) for automated processing.

Can YWLX’s tempermill adjust the temper rolling process to accommodate different grades of automobile steel?

Yes, YWLX’s tempermill is designed to adjust the temper rolling process for diverse automobile steel grades (e.g., DP steel, IF steel, high-strength low-alloy steel) via two key components: 1) Hydraulic Gauge Control (HAGC): The HAGC system fine-tunes the roll gap to apply varying levels of soft reduction—for example, applying 1–2% reduction to DP steel to enhance its tensile strength, or 0.5–1% reduction to IF steel to improve its deep drawability. 2) Variable Tension Settings: The tension control system adjusts reel torque to match the steel’s yield strength—higher tension for high-strength steel (to ensure uniform rolling) and lower tension for low-carbon steel (to prevent over-stretching). Additionally, YWLX’s tempermill allows quick work roll changes (via automated roll handling systems), enabling switches between textured rolls (for exterior automotive steel) and smooth rolls (for interior structural steel) in under 30 minutes. For wholesalers, this flexibility means clients can use a single tempermill for multiple product lines, reducing equipment investment costs.

What maintenance is required for the key components of YWLX’s tempermill to sustain efficient temper mill operation?

To sustain efficient temper mill operation, YWLX recommends regular maintenance for key components: 1) Work Rolls & Backup Rolls: Grind work rolls every 50,000 tons and backup rolls every 150,000 tons to restore surface precision; inspect for cracks or wear monthly. 2) Tension Reels: Lubricate servo motor bearings every 2,000 operating hours; check reel alignment quarterly to prevent strip misalignment. 3) HAGC System: Calibrate load cells and displacement sensors every 3 months to ensure thickness control accuracy; replace hydraulic oil every 6 months to prevent contamination. 4) Surface Inspection System: Clean cameras and LED lights weekly to maintain image quality; update AI defect-detection software annually for improved accuracy. YWLX provides maintenance manuals and training for wholesalers to share with clients, helping extend component life by 20–30% and minimize unplanned downtime in automobile steel production.
