Optimization of Elongation Rate in Skin Pass Process

The skin pass mill represents the final and most critical stage in producing high-quality flat-rolled steel products, where precise control of elongation rate determines the material's final mechanical properties and surface characteristics. In modern steel processing, the skin pass operation serves multiple essential functions - from improving surface finish to controlling mechanical properties and ensuring dimensional stability. The elongation rate during skin pass rolling has emerged as one of the most significant parameters affecting product quality, with even minor variations potentially causing substantial impacts on downstream processing and final product performance.

Fundamental Principles of Elongation in Skin Pass Rolling

The elongation achieved during skin pass rolling results from complex interactions between several process variables. Unlike conventional rolling processes that focus primarily on thickness reduction, the skin pass operation emphasizes controlled stretching of the material to achieve specific metallurgical and mechanical effects. The elongation rate typically ranges between 0.5% and 2.5% depending on material grade and final application requirements, with each percentage point significantly influencing the steel's yield strength, surface roughness, and forming characteristics.

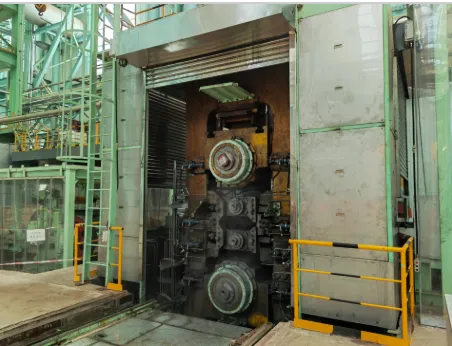

In a typical skin pass mill configuration, elongation develops through the combined effects of roll force and interstand tension. The work rolls, supported by precisely engineered backup roller systems, impart controlled deformation while tension units before and after the mill stretch the material to the desired degree. This delicate balance between compression and tension forces requires exacting control to ensure uniform elongation across the entire strip width and length. Modern mills employ advanced measurement systems including laser speedometers and tension load cells to monitor elongation in real-time, allowing for instantaneous adjustments to maintain process stability.

Backup Roller Systems and Their Impact on Elongation Consistency

The backup roller assembly in a skin pass mill plays a pivotal role in achieving consistent elongation rates throughout production runs. These massive support rollers maintain work roll stability and prevent deflection under load, ensuring uniform pressure distribution across the strip width. Any irregularity in backup roller performance can lead to variation in elongation across the strip, manifesting as inconsistent mechanical properties or surface quality issues in the final product.

Recent advancements in backup roller technology have significantly improved elongation control capabilities in modern skin pass mills. Temperature-controlled roller surfaces maintain consistent thermal expansion characteristics, while advanced bearing designs minimize vibration that could affect elongation uniformity. Some mills now incorporate segmented backup roller designs with independent hydraulic control, allowing dynamic adjustment of roll gap geometry to compensate for strip width variations or incoming material inconsistencies. These innovations have enabled contemporary mills to maintain elongation tolerances that were previously unattainable, particularly when processing advanced high-strength steels that present unique challenges in deformation control.

Skin Pass Mill: Process Parameters Affecting Elongation Rate Control

Optimizing elongation rate in skin pass rolling requires careful management of multiple interacting parameters. The percentage elongation depends fundamentally on the relationship between entry and exit tensions, with higher interstand tension differences producing greater elongation. However, this relationship is not linear and is significantly influenced by other factors including rolling speed, roll force, and material properties.

The work roll diameter in a skin pass mill significantly affects elongation behavior, with smaller diameter rolls typically producing more localized deformation and potentially different elongation characteristics compared to larger rolls. Roll surface texture also plays a role, as rougher surfaces may increase the effective reduction and alter the elongation-tension relationship. Modern mills often employ variable crown work rolls supported by advanced backup roller systems to dynamically adjust for these effects and maintain consistent elongation across the entire strip width.

Material characteristics represent another critical factor in elongation control. Variations in incoming steel hardness, thickness, or temper condition can all affect how the material responds to skin pass rolling. Advanced mills now incorporate adaptive control systems that automatically adjust process parameters based on real-time measurements of these variables, maintaining consistent elongation despite fluctuations in incoming material properties.
