The Temper Mill: Where Force Meets Finesse

In the world of modern metallurgy, the difference between a good product and a great one lies in the mastery of control. It is in the precise, calculated application of force that materials are transformed. At the heart of this transformation for countless steel and non-ferrous metal products lies a critical piece of technology: the temper mill. This machine is the definitive stage where the inherent strength of rolled metal is refined and its character is set. For over two decades, Yang Wang Li Xin has stood at the forefront of this precise art, engineering temper mill solutions that embody this principle. Guided by the expertise of its founder, Dr. Yang, the company has pioneered the development of the High precise temper mill, integrating advanced mechanical, electronic, and hydraulic technologies into a seamless, powerful package.

Understanding the Core of the Temper Mill Process

The journey of a metal strip from a coiled slab to a flawless, high-performance product is complex. After hot and cold rolling, the metal's internal structure is left with residual stresses and inconsistent properties. Enter the temper mill process. This is not a process of shaping, but one of perfecting. It is the final, critical touch that elevates the metal from a semi-finished state to a market-ready product.

Think of it as a master blacksmith putting the final edge on a blade. The temper mill subjects the metal strip to a very specific, controlled amount of cold reduction—typically between 0.5% and 4%. This seemingly small application of pressure has profound effects. It realigns the metallic crystals, eliminates discontinuous yield points (preventing "stretcher strains" during forming), and imparts uniform mechanical strength. The process is a symphony where uncoilers, tension devices, the mill stand, and recoilers work in perfect harmony. It is this intricate temper mill process that ensures the metal will behave predictably and reliably.

The core functions are detailed below:

As the table illustrates, the temper mill process is multifaceted, addressing both the internal "health" of the metal and its external form.

The Mechanics of a Modern Temper Mill

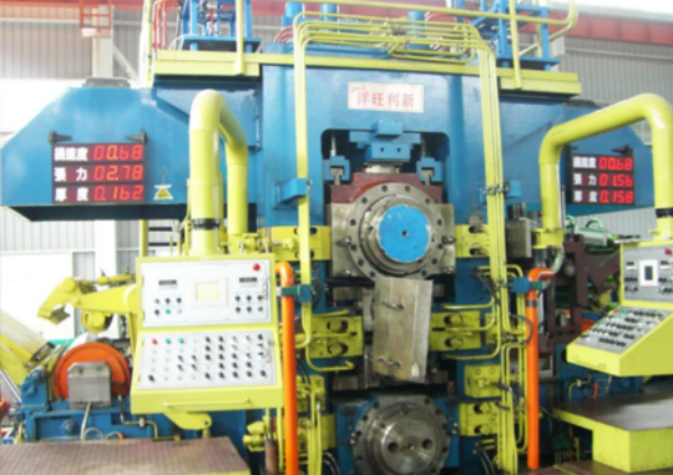

A temper mill is a masterpiece of integrated engineering, converging advanced technologies to deliver controlled plastic deformation. The strip passes through a pair of work rolls, supported by larger backup rolls to prevent flexing under immense pressure. The roll force is meticulously generated, often through a powerful hydraulic screw-down system capable of micro-adjustments in real-time.

The true sophistication, however, lies in the ancillary systems. Entry and exit tension stations are critical. By applying specific tensile force before and after the roll bite, the process is stabilized, preventing slippage and contributing to final flatness. Furthermore, work rolls can be equipped with shape control mechanisms, such as roll bending, to ensure pressure is applied evenly across the entire strip width—a paramount requirement for a perfectly flat product.

Another key mechanical aspect is surface texturing. The work rolls can be ground to a mirror finish or purposefully roughened via shot blasting or laser texturing. This transfers a specific micro-roughness pattern onto the strip, which is a functional, not cosmetic, feature. It improves lubricant retention during forming, prevents sheets from sticking together, and provides an excellent substrate for paint adhesion. The temper mill is, therefore, as much a surface finishing tool as it is a mechanical property modifier.

The Revolution of the High Precise Temper Mill

The leap from a standard temper mill to a High precise temper mill represents a quantum advance in capability. This evolution is driven by industry demands for tighter tolerances, superior surface quality, and absolute consistency. A High precise temper mill is defined by its unparalleled control, primarily orchestrated by a sophisticated Automatic Gauge Control (AGC) system.

The AGC system is the brain of the operation. It continuously monitors the strip's thickness, flatness, and tension using high-response sensors. If it detects a deviation of mere microns, it instantaneously commands hydraulic actuators to adjust the roll gap or modify the tension. This closed-loop control happens in milliseconds, ensuring the entire coil possesses identical properties. This is a critical advantage for the automotive or aerospace sectors, where consistency is non-negotiable.

Yang Wang Li Xin’s dedication to R&D has positioned their High precise temper mill at the pinnacle of this technology. Their systems seamlessly integrate cutting-edge design with state-of-the-art controls. The result is a machine that perfects metal with unimaginable precision, providing a tangible competitive edge by maximizing yield, reducing waste, and producing a superior, high-value product.

FAQs About Our Temper Mill

What are the advantages of your High precise temper mill?

The key advantages are unmatched consistency, superior product quality, and enhanced efficiency. Our advanced AGC system guarantees uniform mechanical properties and precise thickness control, resulting in a strip with excellent deep drawability, perfect flatness, and a tailored surface finish. This leads to higher customer yields and fewer rejects, providing a rapid return on investment.

How does the temper mill process improve deep draw ability?

The temper mill process introduces controlled plastic deformation that eliminates the yield point elongation. This prevents unsightly stretcher strains on formed parts. By smoothing the stress-strain curve, the metal can be stretched and drawn deeply and uniformly without localized thinning or tearing, which is critical for manufacturing complex components like automotive oil pans.

Can your temper mill handle different materials?

Absolutely. Our temper mill is engineered for versatility. It is designed to process a wide range of materials, including various grades of carbon steel, HSLA, and stainless steels, as well as non-ferrous metals like aluminum and copper alloys. The mill's robust and flexible design makes it an ideal solution for multi-product facilities.

What surface finishes can your temper mill achieve?

Our High precise temper mill offers exceptional control over the final surface. We can achieve a brilliant, mirror-like surface or, through advanced roll texturing, impart a specific, controlled matte finish. This is essential for improving paint adhesion, enhancing coating uniformity, and facilitating lubricant retention during stamping.

Why is your company the best partner for a temper mill project?

With over two decades of experience, we are a strategic technology partner, not just a manufacturer. Our founder's background ensures our solutions are built on deep scientific understanding. We provide comprehensive turn-key services, from custom design to commissioning, ensuring your High precise temper mill investment keeps your production line competitive for years to come.

In conclusion, the temper mill is the crucial gateway to quality. The evolution into the High precise temper mill marks a new era of precision manufacturing, embodying a perfect partnership: the unerring force of mechanics guided by the sophisticated finesse of electronic intelligence. For any producer looking to excel, embracing this level of precision is an imperative. It is the definitive point where force meets finesse.
