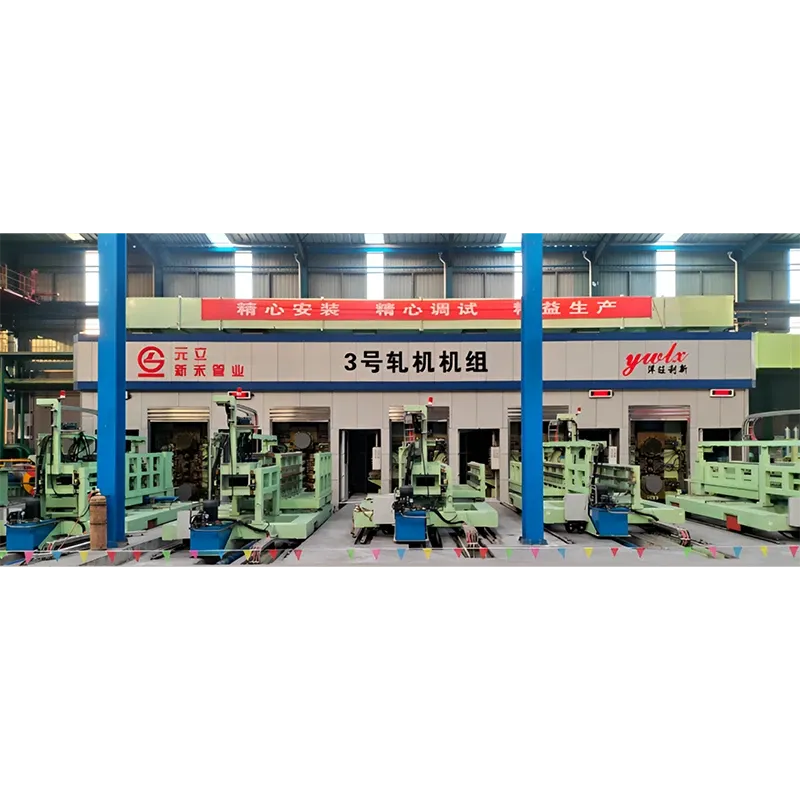

Producing Deep-Drawing Steel with Tandem Cold Rolling Technology

The production of deep-drawing quality steel represents one of the most demanding applications for tandem cold rolling mill technology. These high-formability steels, essential for complex automotive body panels and precision industrial components, require exceptional control over mechanical properties and surface characteristics. Modern pickle line tandem cold mill configurations have evolved specifically to meet these challenges, combining precise thickness reduction with carefully controlled material hardening. The tandem cold mill's ability to deliver uniform mechanical properties across the entire coil length while maintaining perfect surface quality makes it indispensable for deep-drawing steel production. This technology allows manufacturers to achieve the perfect balance between strength and formability that deep-drawing applications demand.

The Tandem Cold Mill Configuration for Deep-Drawing Steel

A specialized tandem cold rolling mill for deep-drawing steel production typically features four to six rolling stands arranged in sequence, each contributing to the gradual reduction and work hardening of the material. The pickle line tandem cold mill variant integrates scale removal with the rolling process, ensuring pristine surface conditions before the critical cold reduction begins. Between stands, sophisticated loopers maintain optimal tension, preventing material stretching that could compromise the steel's deep-drawing characteristics. The mill's design emphasizes precise control over roll gaps and interstand tensions, with the work roll chock assembly in each stand engineered for micrometer-level positioning accuracy. This configuration allows for the controlled, progressive work hardening needed to develop deep-drawing steel's unique combination of strength and formability.

Tandem Cold Mill: Roll Stack Configuration and Its Impact on Material Properties

The arrangement and interaction of rolls in a tandem cold mill directly influence the quality of deep-drawing steel produced. The work roll chock assembly in each stand maintains precise alignment of the primary work rolls that contact the steel strip. Intermediate rolls, positioned between the work rolls and backup rolls in many modern mills, serve to distribute rolling pressure more evenly across the strip width. Some advanced designs incorporate vertical roll systems to manage edge thinning and maintain perfect strip profile - critical factors for deep-drawing applications where consistent material flow is essential. The specific combination and configuration of these rolls determine the uniformity of cold work imparted to the steel, which must be carefully controlled to achieve the desired forming characteristics in the final product.

Tandem Cold Mill’s Precision Control Systems for Deep-Drawing Quality

Producing consistent deep-drawing steel requires unprecedented control throughout the tandem cold rolling process. Modern mills employ multiple closed-loop control systems that continuously monitor and adjust rolling parameters. The work roll chock assembly in each stand incorporates hydraulic positioning systems capable of making real-time adjustments to maintain perfect strip thickness. Intermediate roll bending systems provide dynamic shape control, ensuring flatness across the entire strip width - a critical factor for deep-drawing performance. Advanced mills utilize laser thickness gauges and shape scanners that feed data to the vertical roll adjustment systems, creating a comprehensive control network that maintains tolerances within fractions of a percent. These systems work in concert to produce steel with the exact mechanical properties required for demanding deep-drawing applications.

Material Transformation During Tandem Cold Rolling

The cold reduction process in a tandem cold mill fundamentally alters the steel's microstructure to develop deep-drawing capabilities. As the material passes through successive stands, the grains elongate and align in the rolling direction while dislocations accumulate to strengthen the material. The intermediate rolls play a crucial role in ensuring this deformation occurs uniformly across the strip width and thickness. The pickle line tandem cold mill configuration is particularly effective for deep-drawing steels as it removes surface oxides before cold reduction begins, preventing defects that could initiate tears during subsequent forming operations. The precise control offered by modern work roll chock assemblies allows for carefully graduated reductions that optimize the steel's formability while developing just enough strength to resist excessive thinning during deep drawing.

Tandem Cold Mill’s Surface Quality Requirements and Control

The tandem cold rolling mill must produce steel with surface characteristics that meet exacting deep-drawing standards. The work roll chock assembly design minimizes vibration that could cause surface irregularities, while advanced roll grinding techniques ensure perfect work roll profiles. Intermediate roll systems help maintain consistent surface finish across the entire strip width by evenly distributing rolling pressure. In pickle line tandem cold mill configurations, the integrated cleaning process ensures scale-free surfaces before rolling begins. The vertical roll systems contribute to edge quality maintenance, preventing edge defects that could propagate during deep-drawing operations. The resulting surface must be free of imperfections that could cause visual defects in painted automotive panels or initiate cracking during severe forming operations.

Tandem Cold Mill: Production of Specialized Deep-Drawing Steel Grades

Modern tandem cold rolling mills have adapted to produce increasingly sophisticated deep-drawing steel grades. The work roll chock assembly designs have evolved to handle the precise rolling requirements of ultra-low-carbon steels and interstitial-free grades favored for severe drawing applications. Intermediate roll systems have been optimized to manage the unique flow characteristics of these specialized steels during reduction. Some mills incorporate vertical roll systems specifically configured for thin-gauge deep-drawing steels used in lightweight automotive applications. The pickle line tandem cold mill configuration proves particularly valuable for these sensitive grades, as it minimizes surface contamination between hot rolling and the critical cold reduction process. These adaptations allow modern mills to produce deep-drawing steels with r-values exceeding 2.0, indicating exceptional formability in all directions.

Tandem Cold Mill: Quality Assurance in Deep-Drawing Steel Production

The tandem cold rolling mill serves as the primary quality control point in deep-drawing steel manufacturing. In-line measurement systems continuously monitor thickness, width, and shape after each stand, with the work roll chock assembly making instantaneous corrections as needed. Intermediate roll positioning systems ensure uniform deformation across the strip, critical for maintaining consistent deep-drawing characteristics. The vertical roll systems monitor and control edge quality, preventing variations that could affect material flow in drawing dies. Off-line testing validates the steel's mechanical properties, including yield strength elongation and plastic strain ratio - all of which must fall within narrow windows for successful deep-drawing applications. This comprehensive quality approach ensures every coil meets the stringent requirements of automotive stamping plants and industrial manufacturers.

The Essential Role of Tandem Cold Rolling Technology

From automotive fuel tanks to appliance housings and structural components, deep-drawing steel owes its existence to the precision of tandem cold rolling mill technology. The intricate interplay between work roll chock assemblies, intermediate rolls, and vertical roll systems creates material with the exact combination of strength and formability needed for severe drawing operations. The pickle line tandem cold mill configuration has proven particularly valuable for these sensitive grades, ensuring perfect surface conditions before cold reduction begins. As product designs demand ever more complex geometries and material savings become increasingly important, tandem cold rolling technology will continue evolving to produce deep-drawing steels that meet these challenges while maintaining the highest quality standards.
