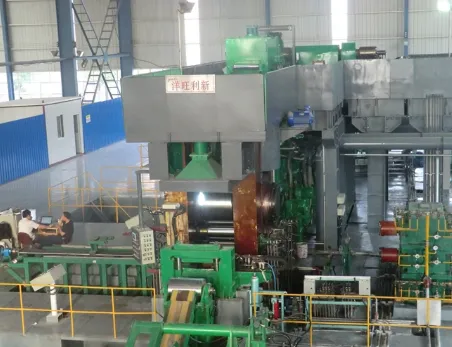

Application of Cladding Rolling Mill in Bimetallic Composite Plates

The demand for advanced materials with combined properties—such as corrosion resistance, high strength, and thermal conductivity—has led to the widespread adoption of bimetallic composite plates. These materials are produced using specialized cladding processes, where two or more dissimilar metals are bonded to form a single composite structure. Among the various manufacturing techniques, cladding rolling mills play a pivotal role in ensuring strong metallurgical bonds, uniform thickness, and high-quality surfaces.





Fundamentals of Cladding Rolling Mill Technology



A cladding rolling mill is designed to bond two or more metal layers under high pressure and temperature, creating a metallurgical bond without the need for adhesives or mechanical fasteners. The process typically involves:



Surface Preparation: The metals to be bonded are cleaned to remove oxides and contaminants, ensuring optimal adhesion.

Heating and Rolling: The metals are heated (either before or during rolling) and passed through heavy-duty rolling mills, where compressive forces facilitate atomic diffusion at the interface.

Post-Processing: The composite plate may undergo heat treatment, cold rolling, or surface finishing to achieve desired mechanical and physical properties.

This method is particularly effective for stainless steel cladding process, where a corrosion-resistant stainless steel layer is bonded to a high-strength carbon steel base, combining durability with cost efficiency.



Weld Overlay Cladding vs. Rolling Mill Cladding



While weld overlay cladding is widely used for repairing or coating components, it has limitations in producing large-scale bimetallic plates. Weld cladding involves depositing a filler metal onto a substrate using arc or laser welding, which can lead to uneven thickness, residual stresses, and heat-affected zone (HAZ) distortions.



In contrast, cladding rolling mills provide several advantages:

Uniform Bonding: Rolling ensures consistent thickness and a homogeneous bond across the entire plate.

Higher Production Rates: Unlike weld cladding, which is a slow, layer-by-layer process, rolling mills can produce large sheets in a single pass.

Superior Mechanical Properties: The rolling process enhances grain refinement, improving strength and fatigue resistance.

However, weld overlay cladding remains useful for localized repairs or complex geometries where rolling is impractical.



High-Speed Laser Cladding and Its Integration with Rolling Mills



High-speed laser cladding is an emerging technology that uses focused laser beams to melt and fuse powdered metals onto a substrate. This method offers precise control over layer thickness and minimal thermal distortion. When combined with cladding rolling mills, it can further enhance bond strength and surface quality.



Advantages of Hybrid Laser-Rolling Cladding:



Precision Deposition: Laser cladding allows for exact material placement, reducing waste and improving material efficiency.

Enhanced Bonding: The rolling process compresses the laser-deposited layer, eliminating porosity and improving adhesion.

Versatility: Suitable for cladding of copper and steel or cladding of aluminum and steel, where traditional methods may struggle with dissimilar metal bonding.

This hybrid approach is particularly beneficial in aerospace and automotive industries, where lightweight yet durable composites are essential.



Stainless Steel Cladding Process for Corrosion Resistance



One of the most common applications of cladding rolling mills is the production of stainless steel-clad plates. The stainless steel cladding process involves bonding a thin layer of stainless steel (e.g., 316L or 304) to a carbon steel substrate, offering an optimal balance between cost and performance.



Key Benefits:



Corrosion Resistance: The stainless steel layer protects against harsh environments, making it ideal for chemical tanks, marine structures, and food processing equipment.

Cost Efficiency: Since only the surface requires stainless steel, material costs are significantly reduced compared to solid stainless steel plates.

Structural Integrity: The rolling process ensures a strong metallurgical bond, preventing delamination under mechanical stress.

Industries such as oil & gas, construction, and power generation rely heavily on this process for long-lasting, maintenance-free components.



Challenges in Cladding of Copper and Steel



The cladding of copper and steel presents unique challenges due to the significant differences in their thermal expansion coefficients and melting points. Copper’s high thermal conductivity makes it difficult to bond with steel using conventional welding techniques.



How Cladding Rolling Mills Overcome These Challenges:



Diffusion Bonding: By applying heat and pressure, the rolling mill promotes atomic diffusion at the interface, creating a strong intermetallic bond.

Interlayer Solutions: Sometimes, a nickel or silver interlayer is used to improve bonding between copper and steel.

Controlled Cooling: Post-rolling heat treatment minimizes residual stresses caused by differing thermal expansions.

These composites are widely used in electrical applications, heat exchangers, and electromagnetic shielding, where both conductivity and structural strength are required.



Cladding of Aluminum and Steel for Lightweight Applications



The cladding of aluminum and steel is another critical application, particularly in the automotive and aerospace sectors, where weight reduction is crucial. However, aluminum and steel form brittle intermetallic compounds when bonded, leading to weak joints if not properly controlled.



Solutions in Rolling Mill Cladding:



Explosive Cladding Pre-Treatment: Some mills use explosive bonding before rolling to create an initial mechanical bond.

Low-Temperature Rolling: Reducing rolling temperatures minimizes intermetallic formation.

Intermediate Layers: Zinc or other coatings can improve adhesion between aluminum and steel.

These composites are increasingly used in vehicle body panels, battery enclosures, and aircraft structures, offering an optimal mix of lightweight aluminum and high-strength steel.



The cladding rolling mill is a cornerstone technology in the production of high-performance bimetallic plates, enabling the combination of dissimilar metals like copper and steel, aluminum and steel, and stainless steel-clad composites. While alternative methods such as weld overlay cladding and high-speed laser cladding have their niches, rolling mills remain unmatched in scalability, bond strength, and uniformity.



As industries continue to push for lighter, stronger, and more corrosion-resistant materials, advancements in cladding processes will play a pivotal role in shaping the future of composite manufacturing. By integrating new technologies like AI and additive manufacturing, cladding rolling mills will further enhance efficiency and expand the possibilities of bimetallic material applications.
