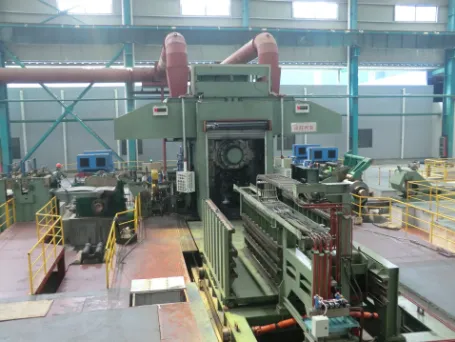

Thickness Accuracy Control of Thin Gauge Steel Plates in Reversible Cold Rolling Mills

The production of thin gauge steel plates with precise thickness tolerances is a critical requirement for industries such as automotive, electronics, and precision engineering. Reversible cold rolling mills are particularly well-suited for manufacturing these high-precision thin steel plates due to their flexibility in adjusting rolling parameters between passes. Unlike tandem mills, a cold reversing mill allows for multi-pass rolling with intermediate adjustments, making it ideal for achieving tight thickness tolerances in ultra-thin steel strips (0.1 mm and below).

Thickness accuracy in reversing cold rolling mills is influenced by several factors, including roll gap control, tension management, roll bending systems, and material deformation behavior. Modern reversible cold rolling mill setups incorporate advanced automation, real-time monitoring, and adaptive control systems to ensure that thickness deviations remain within ±1% or better.

Challenges in Thin Gauge Rolling with Reversible Cold Mills

Producing thin steel plates in a reversible cold rolling mill presents unique challenges that must be carefully managed to maintain thickness consistency.

1. Elastic Deformation of Rolls (Mill Spring Effect)

In thin gauge rolling, the high rolling forces required to reduce thickness cause significant elastic deformation of work rolls, leading to variations in the actual roll gap. The reversing cold rolling mill must compensate for this mill spring effect using hydraulic gap control (HGC) systems that dynamically adjust roll positioning during operation.

2. Tension Variations During Reversals

Since a reversing rolling mill processes the strip back and forth, tension fluctuations occur during direction changes. These variations can lead to temporary thickness deviations if not properly controlled. Modern mills use automatic tension regulators to maintain uniform strip tension between passes.

3. Work Roll Thermal Crowning

The repeated deformation of thin steel generates heat, causing thermal expansion of the work rolls. Without proper control, this leads to uneven roll profiles, affecting thickness consistency across the strip width. Reversible cold rolling mills employ roll cooling systems and thermal camber models to counteract this effect.

4. Material Hardening and Gauge Variation

As the strip undergoes multiple cold rolling passes in a cold reversing mill, work hardening increases, requiring adjustments in rolling force and speed to maintain uniform reduction.

Key Technologies for Thickness Control in Reversible Cold Rolling Mills

To overcome these challenges, modern reversible cold rolling mills integrate several advanced control systems.

1. Automatic Gauge Control (AGC) Systems

The most critical technology for thickness accuracy in a reversing cold rolling mill is the AGC system, which continuously monitors and adjusts the roll gap. There are three primary AGC methods:

Hydraulic AGC: Uses fast-response hydraulic cylinders to correct roll gap deviations in real time.

Monitor AGC: Adjusts rolling force based on feedback from thickness gauges (X-ray or laser).

Mass Flow AGC: Maintains consistent mass flow (thickness × speed) to prevent gauge variations.

2. Work Roll and Intermediate Roll Bending

To counteract roll deflection and ensure uniform thickness across the strip width, reversible cold rolling mills use:

Positive/Negative Work Roll Bending: Adjusts roll curvature to compensate for deflection.

Intermediate Roll Shifting (in 6-high mills): Optimizes contact pressure distribution.

3. Tension Control Systems

Strip tension must be precisely regulated in a reversing rolling mill to prevent gauge variations. Closed-loop tension control systems adjust coil torque and mill speed to maintain consistent interstand tension.

4. Advanced Roll Grinding and Surface Profiling

The work rolls in a cold reversing mill are precision-ground with specific crown profiles to ensure uniform deformation. Regular roll grinding and inspection are essential to maintain thickness accuracy.

Process Optimization for Thin Gauge Steel in Reversing Mills

Beyond hardware controls, operational strategies play a crucial role in achieving tight thickness tolerances.

1. Multi-Pass Reduction Strategy

Unlike tandem mills, a reversible cold rolling mill allows for customized reduction per pass. For thin gauge steel, a progressive reduction schedule (higher reductions in early passes, finer adjustments in final passes) ensures better thickness control.

2. Speed and Acceleration Management

Since reversing mills alternate directions, speed ramping must be optimized to prevent tension spikes that could affect gauge uniformity. Modern mills use soft acceleration/deceleration algorithms.

3. Adaptive Learning Systems

AI-based process models in reversible cold rolling mills analyze historical rolling data to predict and correct thickness deviations before they occur, improving consistency over successive coils.

4. Post-Rolling Thickness Measurement & Feedback

Laser or X-ray thickness gauges installed at the mill exit provide real-time feedback, allowing immediate corrections in subsequent passes.

Precision Rolling in Reversible Cold Mills

The reversible cold rolling mill remains the preferred choice for producing thin gauge steel plates with exceptional thickness accuracy due to its flexibility, advanced control systems, and ability to perform multi-pass optimizations. By integrating hydraulic AGC, tension control, roll bending, and AI-driven process adjustments, modern reversing rolling mills can achieve thickness tolerances of ±0.5% or better—meeting the stringent demands of high-tech industries.

As automation and machine learning continue to evolve, cold reversing mills will further enhance their capability to produce ultra-thin, high-precision steel with unmatched consistency. For manufacturers seeking superior gauge control in thin steel production, optimizing reversible cold rolling mill processes remains a critical competitive advantage.
