Thickness Control Technology and Accuracy Guarantee in Reversible Cold Rolling Mills

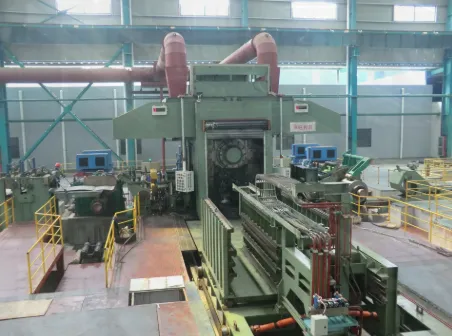

The reversible cold rolling mill is a critical component in modern metal processing, enabling the production of ultra-thin, high-precision steel and aluminum strips with superior surface quality. Unlike traditional tandem mills, a reversing rolling mill processes metal sheets through multiple passes in both forward and reverse directions, allowing for greater flexibility in thickness reduction and material properties refinement. However, maintaining precise thickness control in a cold reversing mill presents significant technical challenges due to dynamic rolling conditions, material deformation behavior, and mechanical constraints.

Fundamentals of Thickness Control in a Reversing Rolling Mill

1. The Role of Rolling Force and Gap Adjustment

In a reversible cold rolling mill, thickness accuracy is primarily governed by the interaction between rolling force, strip tension, and roll gap settings. The mill stand must dynamically adjust the roll gap to compensate for material hardness variations, thermal expansion, and elastic deformation of the mill housing. Modern cold reversing mills utilize hydraulic gap control (HGC) systems, which provide rapid and precise positioning of work rolls to maintain consistent strip thickness across multiple passes.

2. Influence of Material Properties on Thickness Variation

The cold rolling process induces work hardening in the metal strip, increasing its yield strength with each deformation cycle. A reversing rolling mill must account for this progressive hardening to prevent excessive rolling force fluctuations that could lead to thickness deviations. Advanced models integrate material flow stress data into the control system, allowing for real-time adjustments in rolling parameters.

3. Importance of Strip Tension Control

Maintaining uniform strip tension between passes is crucial in a reversible cold rolling mill to prevent slippage, edge cracks, or gauge variations. Tension fluctuations can cause abrupt thickness changes, particularly at the strip head and tail ends. Closed-loop tension control systems, often employing load cells and dancer rolls, ensure stable tension levels throughout the reversing process.

Advanced Thickness Control Systems in Reversing Cold Rolling Mills

1. Automatic Gauge Control (AGC) Technologies

Modern reversing cold rolling mills rely on sophisticated Automatic Gauge Control (AGC) systems to maintain thickness uniformity. Key AGC methodologies include:

Feedback AGC: Uses X-ray or laser thickness sensors to measure deviations and adjust roll gaps in real time.

Feedforward AGC: Predicts thickness variations based on incoming strip properties and preemptively modifies rolling force.

Monitor AGC: Compares actual thickness with target values and applies corrections in subsequent passes.

2. Integration of High-Precision Sensors

Accurate thickness monitoring in a cold reversing mill demands high-resolution sensors capable of withstanding harsh rolling environments. Non-contact measurement devices, such as X-ray thickness gauges and laser profilometers, provide continuous strip thickness data without impeding production speed. These sensors are strategically placed before and after the mill stand to detect deviations and trigger corrective actions.

3. Adaptive Rolling Force and Speed Control

Since a reversible cold rolling mill alternates between forward and reverse passes, maintaining consistent rolling force is challenging due to inertia effects and acceleration phases. Advanced drive systems employ vector-controlled motors and dynamic braking to ensure smooth transitions, minimizing thickness variations during direction changes.

Challenges in Thickness Accuracy and Mitigation Strategies in Reversing Cold Rolling Mills

1. Thermal Expansion and Roll Deformation

The repeated compression in a reversing rolling mill generates significant frictional heat, causing thermal crown development in work rolls. This thermal distortion leads to uneven strip thickness profiles, particularly at high rolling speeds. Modern mills counteract this effect through:

Roll cooling optimization: Precision spray systems regulate roll temperature.

Roll bending and shifting: Adjustable crown control mechanisms compensate for thermal expansion.

2. Strip Shape and Flatness Interactions

Thickness control in a reversible cold rolling mill is closely linked to strip flatness. Excessive rolling force can induce edge waves or center buckles, complicating gauge control. Integrated shape-metering systems and multi-zone roll cooling ensure uniform deformation across the strip width.

3. Head and Tail End Thickness Variations

The transient phases at the beginning and end of each rolling pass in a cold reversing mill often exhibit thickness deviations due to tension build-up and bite instability. Solutions include:

Lead-in and lead-out speed modulation: Gradual acceleration/deceleration reduces tension spikes.

Dynamic pass schedule adjustment: Tailored reduction rates for initial and final segments.

Thickness control in reversible cold rolling mills is a complex interplay of mechanical, thermal, and automation technologies. By leveraging advanced AGC systems, high-precision sensors, and adaptive control algorithms, modern reversing rolling mills achieve micrometer-level accuracy even under dynamic processing conditions. Future advancements in AI, digital twins, and predictive maintenance will further enhance the precision and efficiency of cold reversing mill operations, ensuring consistent quality in high-performance metal strip production.

As the demand for ultra-thin, high-strength materials grows, continuous innovation in thickness control technology will remain a cornerstone of reversing cold rolling mill development.
